Features
Durable
140 to 220 GHz
Insertion loss 2.0 dB typ.
Return loss 15 dB typ.
Individually spring loaded contacts
Patented Coaxial Design
Bias-T Option Available

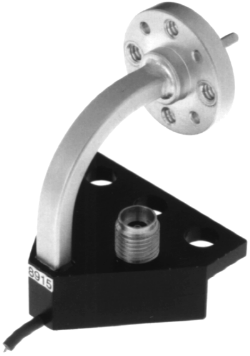

The PICOPROBE® MODEL 220, a high performance microwave probe which incorporates a WR-5 waveguide with our patented coaxial design techniques, has inherent low loss and low dispersion characteristics. Like all of our Picoprobe microwave probes, the Model 220 features: individually spring loaded Beryllium-Copper tips which provide reliable contacts even when probing non-planar structures; direct viewing of probe tips for accurate positioning; and can be designed to almost any pitch and footprint. Smaller pitches and Ground-Signal-Ground footprints are recommended for optimum performance. Please contact our office for additional information regarding the performance specifications of the Model 220 Picoprobe.

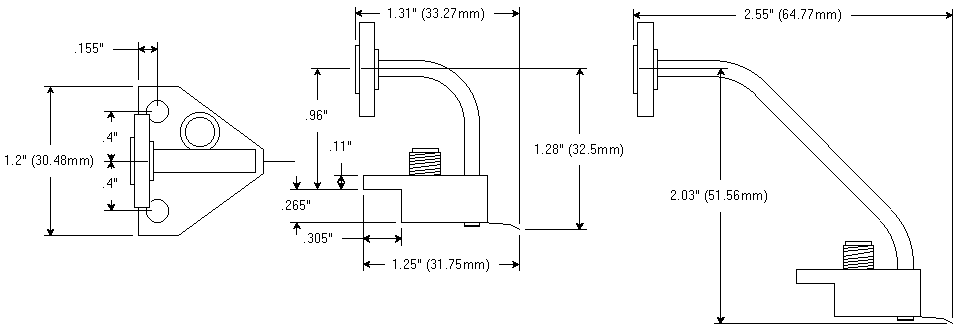

Model 220-BT Waveguide Dimensions      Model 220-BT-M Waveguide Dimensions
