1.GGB 40A-GS-150-DP
2.GGB 40A-SG-150-DP
3.GGB 40A-GSG-150-DP

Features 規格:
·  Durable RF probe
·  Any pitch from 25 to 2540 microns
·  DC to 40 GHz
·  Insertion loss less than 0.8 db
·  Return loss greater than 18 db
·  Measurement repeatability better than -80db
·  Individually spring loaded contacts
·  BeCu , Tungsten or Nickel tips available
·  Variety of footprints
·  Patented coaxial design
·  Available in thirteen styles
·  Custom configurations available

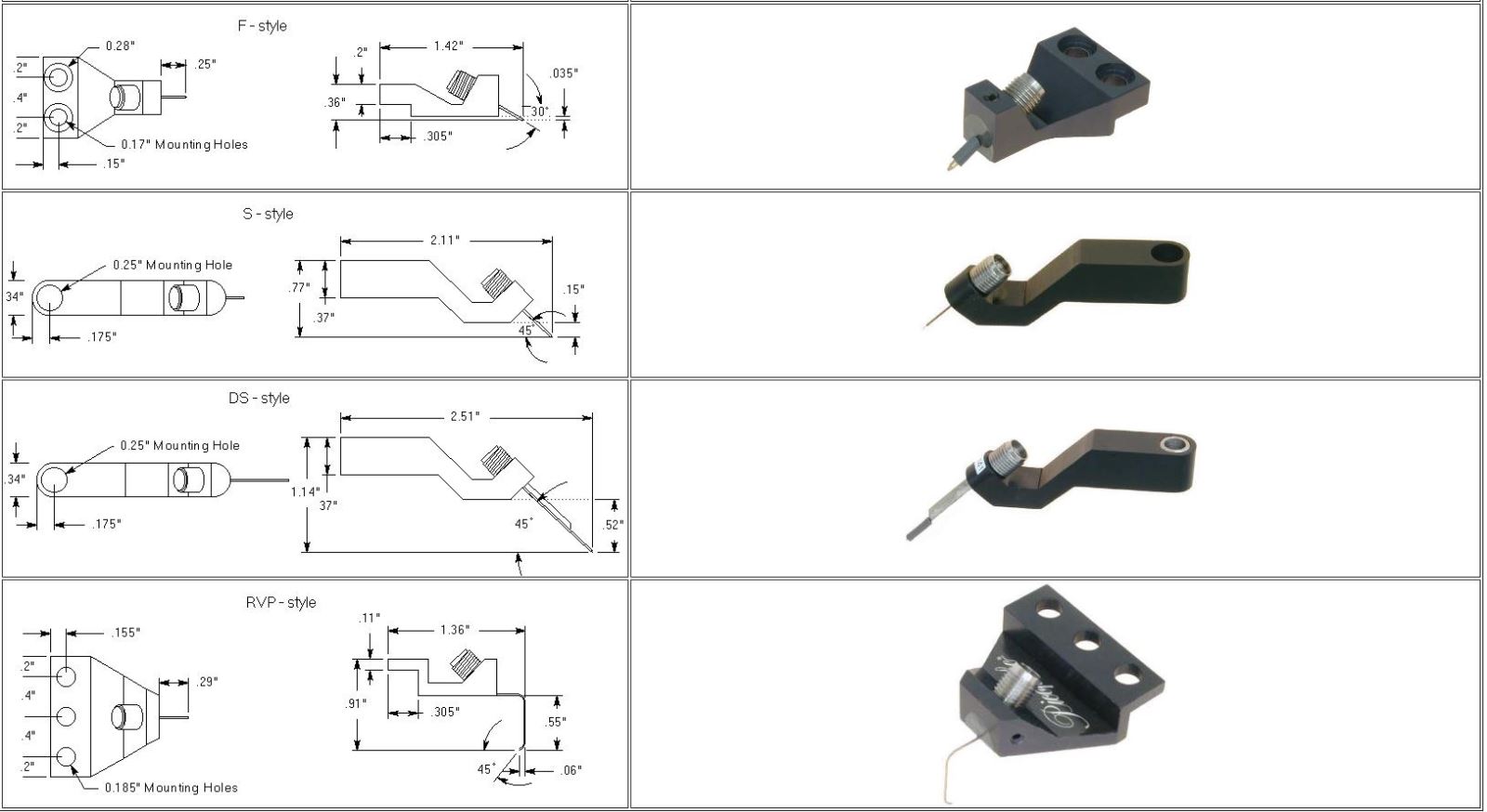

Mounting Style: T, C, GR, P, DP, EDP, LP, Q, F, S, DS, VP, or RVP
