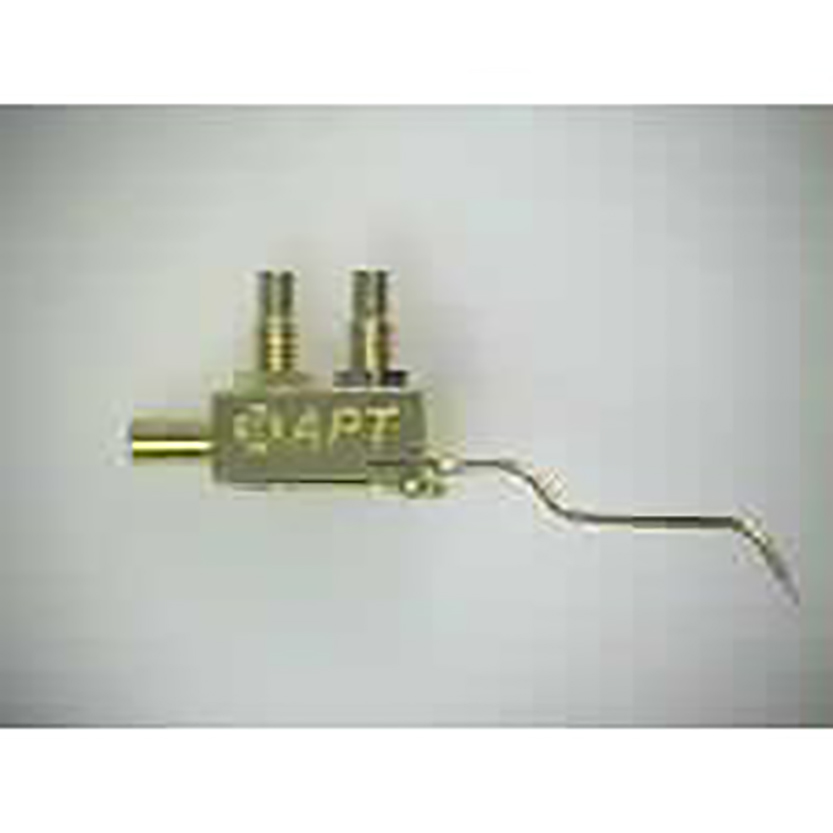

74CJ-APT-KS-SR Low Noise Coaxial Holder with Series Resistor

Product Specifications:

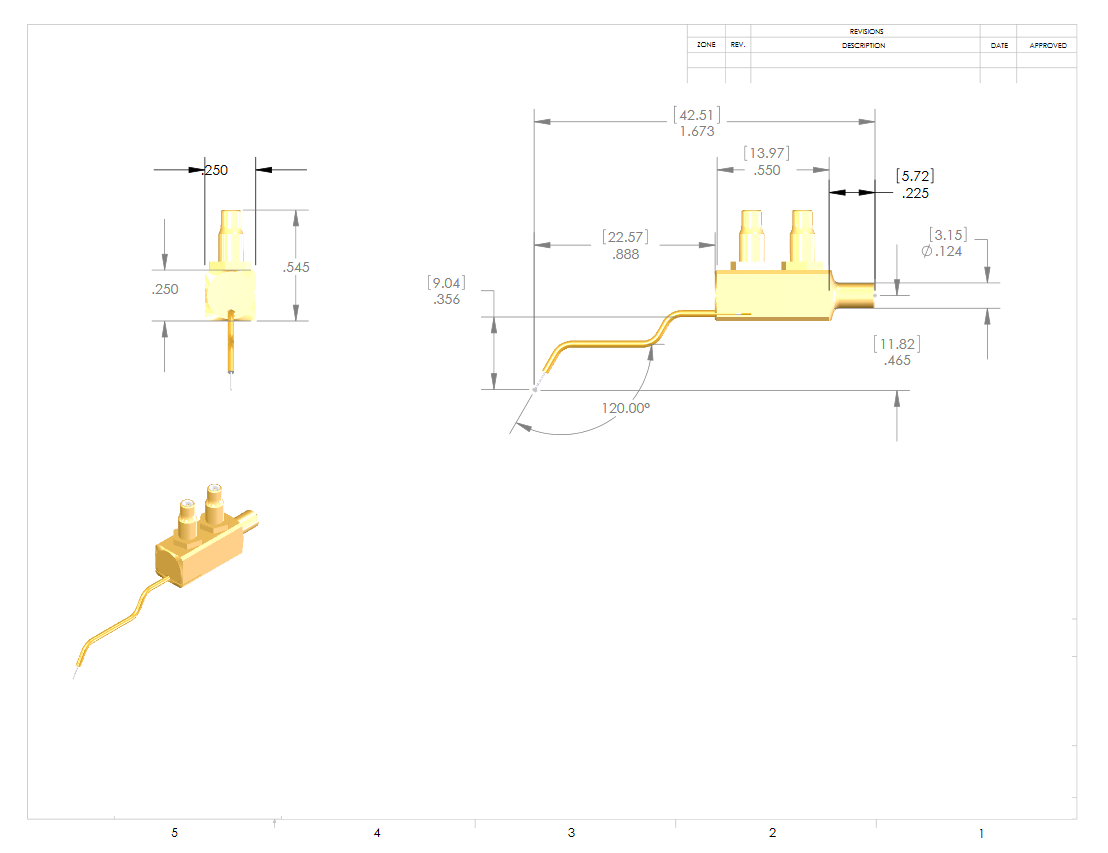

Mechanical:

Material: Type II Gold plated brass/copper Connectors: Two SSMC connectors connected in parallel to create a Quasi-Kelvin connection within the probe holder body Mounting Shank: 0.124" ~ 0.125" Probe: Accepts a 0.034" O.D. semi rigid coaxial probe (73CT-APTA, 73CT-CMIA, 73CT-SMTA) Probe lock: The coaxial probe is held in place by two 0x80 pan head screws tighten the holder clamp

Electrical:

Current leakage: < 10 fA. Frequency: > 150 MHz Capacitance (Guarded): < 10 fF Impedance: 50 Ohm Power Handling: > 125 Watts @ 18-21 Deg. C Voltage Rating: > 250 Volts RMS @ sea level

The series resistor is mounted between the two SSMC connectors within the probe holder body.  The standard resistor is an SM-603, 1/16 watt with other wattages available upon request.
