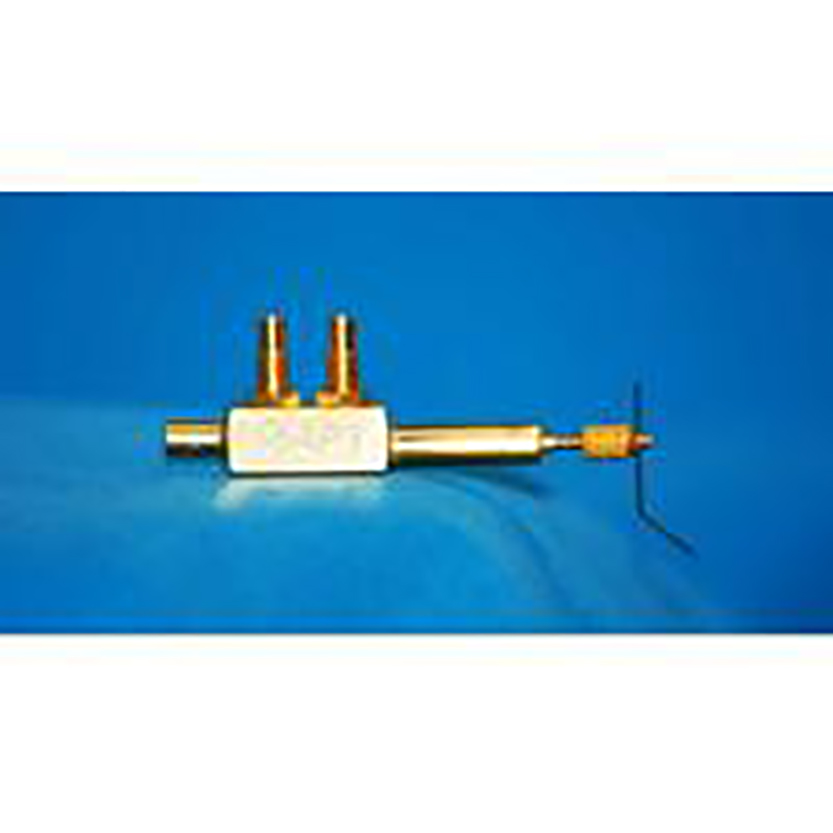

74CJA-APT-KS Coaxial Probe Holder

Low Profile form factor of 74CJ and DCP100 Series with ability to use any 20 mil disposable probe.
Excellent for applications that require the following:


    Low current probing with probes made from BeCu, Paliney® 7 and plated materials.
    Thermal applications where gold plated BeCu or Paliney® 7 probes would withstand higher temperatures without oxidizing.
    Allowing a cost effective method of using inexpensive probes when your application does not require the high performance coax probes.
    Several probe angles to choose from (45, 60, and 90 degrees).
    Probe fastening using jam nut, open and closed friction lock, gold plated pin jack.
    Optional ground return fastening point within body. This allow a anchor point to connect a ground wire without damaging the SSMC connector.
    An example of this is pictured to the right on the 74PJA probe holder.
    Longer lengths of probe extension available to choose from, if your using with another brand of prober where this form-factor is too short.
